Silicon MK2 Build

Posted: 9/13/2016 8:40:29 PM
Fat Bob

From: Florida

Joined: 9/3/2016

Looking at the various designs and reading Fred's comments I decided the MK2 might be

the better one to build. It seems the current MK2 is not the one with all the bells and whistles

and I couldn't find a PCB to buy so I'm laying it out on Perf board. So it looks like I'm buildingĀ

a Melodia, an EW and the MK2 (one for everyone in the family!).

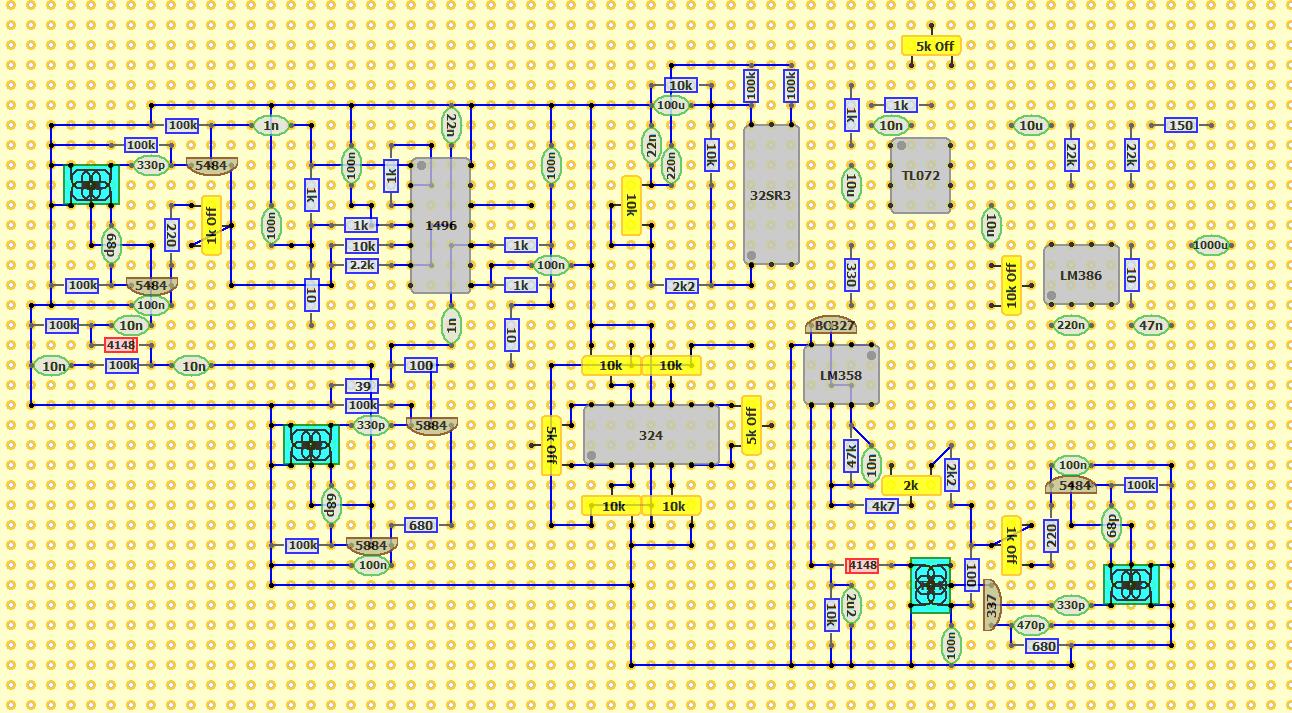

Layout

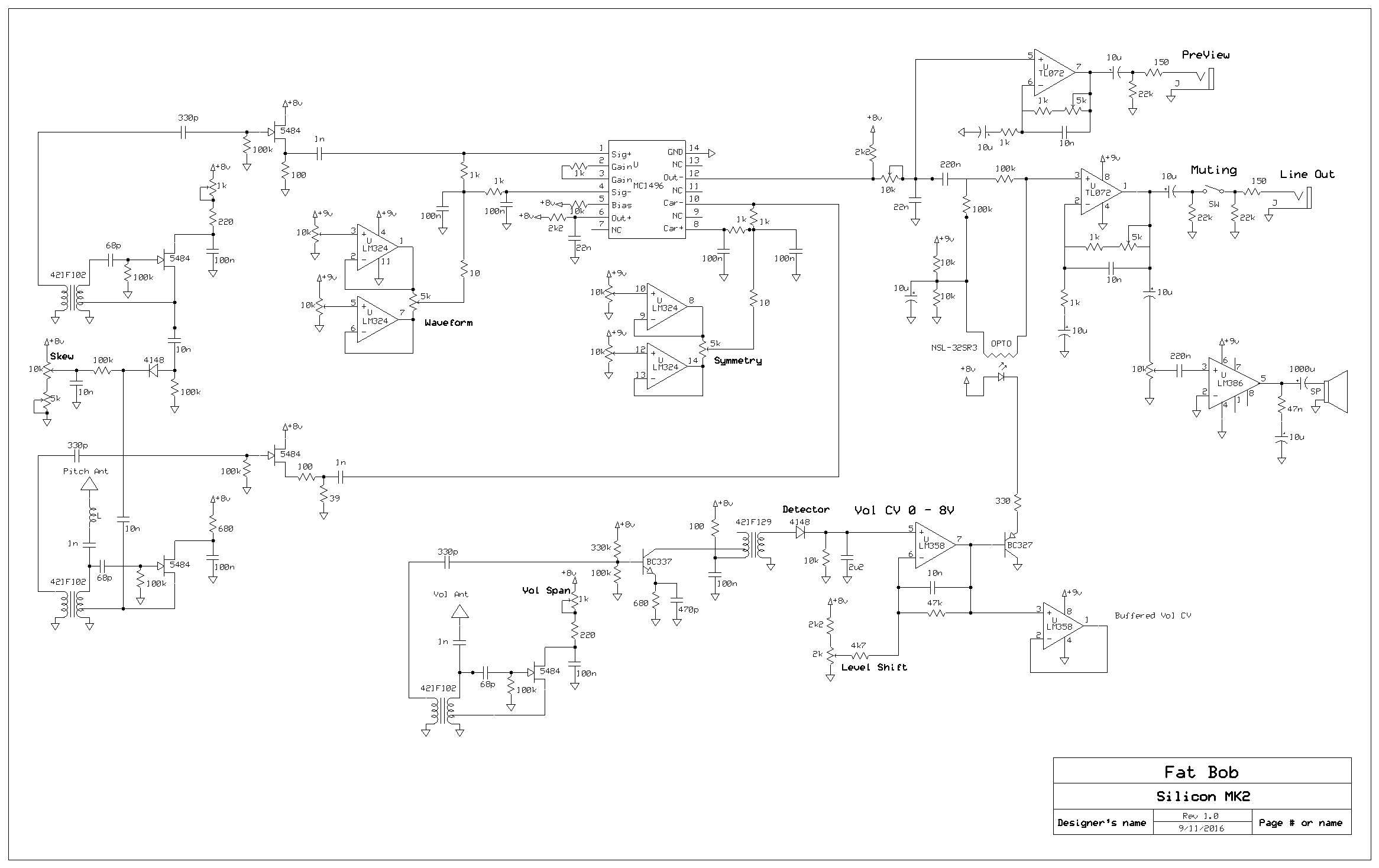

Schematic
